Uploading maps from BaseCamp to Etrex 20?

[keithy]

Good to know you got it sorted. The sequence shouldn't matter, but a reboot might.

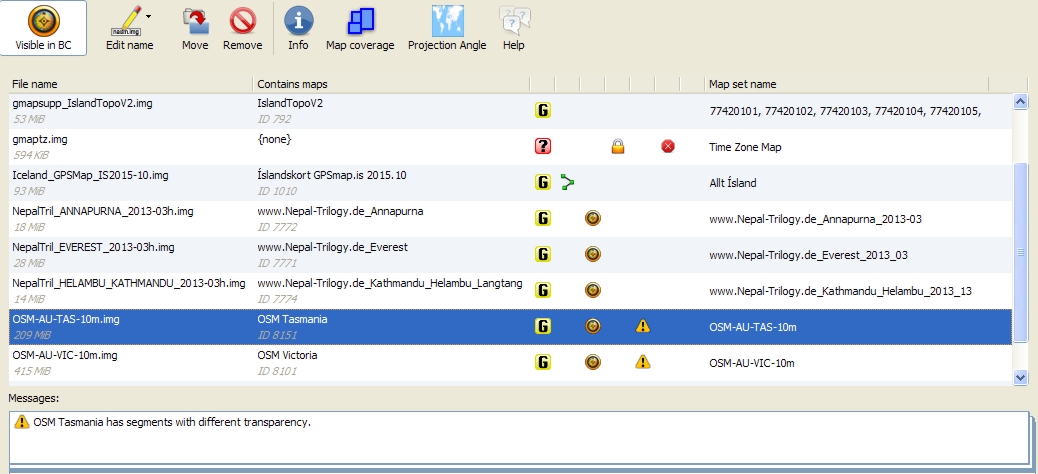

You should check out Javawa if you haven't already. It will tell you if there is a problem with your map. This is the screenshot of Javawa looking at my eTrex 30:

I have a backup of the entire contents of the GPS's original files on the micro SD card as well (in case I accidentally delete anything via PC). I have it in a directory called \backups. Javawa detects the files in the backup directory, which you can see for the timezone gmaptz.img file above, even if it's not in the \Garmin directory, and will tell you which directory it should be located in.

And andrewp's OSM maps on the eTrex 30:


[Strider]

Does anyone know if Andrew's 10m maps have been updated recently? The link given in earlier posts no longer works.

Sent from my SM-N9005 using Tapatalk

[Strider]

I keep a backup of the original files on my computer. Is there an advantage to keeping them on the SD?

Sent from my SM-N9005 using Tapatalk

[GPSGuided]

Download the latest version via DropBox.
http://tinyurl.com/osm-maps

[Strider]

Download the latest version via DropBox.
http://tinyurl.com/osm-maps

These are the 20m maps.

Sent from my SM-N9005 using Tapatalk

[GPSGuided]

This has Andrew's discussion on 10m and 20m...
viewtopic.php?f=21&t=14234&start=120

[andrewp]

Though may I politely point out my dislike for the coloured background? I find a white background much easier to see when using the unit during the day with the backlight off to save battery life.

I have just uploaded new versions of all states with the green background for NPs, woods and forests cutting out at the 300m zoom (on an ETREX 30 at least). I'll see how I like it...

Does anyone know if Andrew's 10m maps have been updated recently? The link given in earlier posts no longer works.

This is still the url to use: http://tinyurl.com/osm-maps.

And andrewp's OSM maps on the eTrex 30:

Keithy, those versions are not the best. They are very slow to refresh the screen because of the way I built the maps. The refresh speed of the current version is acceptable.

[keithy]

Keithy, those versions are not the best. They are very slow to refresh the screen because of the way I built the maps. The refresh speed of the current version is acceptable.

Cheers Andrew - I actually think I have your newer map on my Oregon 600 sdcard. I just haven't copied it to the card on my eTrex yet.

I keep a backup of the original files on my computer. Is there an advantage to keeping them on the SD?

I copy the root drive of my device to the MicroSD when I travel overseas without my PC and limited access to a computer. My last trip I didn't use my backup on my trip to Scandanavia last year, but it was there just in case I accidentally deleted any files when connecting to a random PC to access the GPS root directory and copy gpx track/route files.

I originally thought I could use my android tablet via OTG USB to connect to the Garmin GPS (copy gpx tracks downloaded from the internet to the GPS), but the Android tablet does not recogise the Garmin connected to USB. I mananged to copy gpx files to the MicroSD with the android tablet, but then found out that gpx files on the SD card in the \garmin\gpx files won't work if you have gpx files on the unit directory itself. For some reason, gpx files on the microsd card are ignored if there are gpx files on the device. If the gpx files on the device were deleted, then the Garmin recognised the gpx files on the microsd card.

[Strider]

I have just uploaded new versions of all states with the green background for NPs, woods and forests cutting out at the 300m zoom (on an ETREX 30 at least). I'll see how I like it...

Fantastic! Thanks!

Sent from my SM-N9005 using Tapatalk
