Sleeping mat pump sack in 5 min

Discussion about making bushwalking-related equipment.

Sleeping mat pump sack in 5 min

Postby benji » Wed 11 Jun, 2014 11:29 pm

Ok, maybe 10 minutes. I made this for my Macpac 3/4 insulated sleeping mat, but I'm sure it'd work for other brands. Macpac sell a sexier version of course, but I didn't fancy paying $40 for a stuff sack of a size I wouldn't otherwise use anyway.

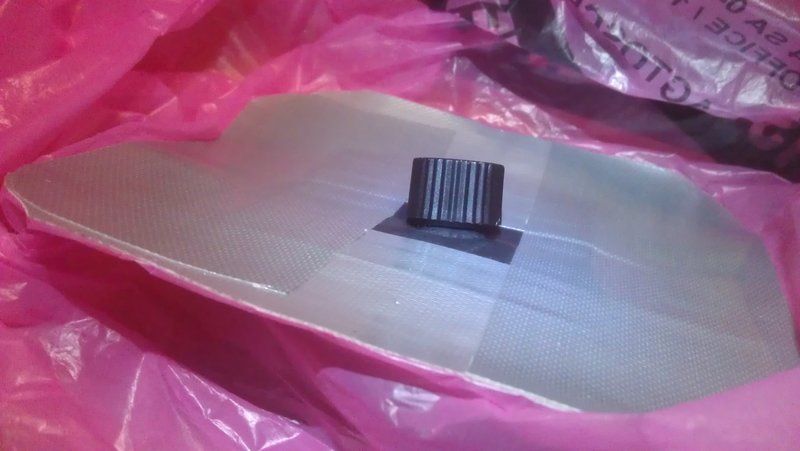

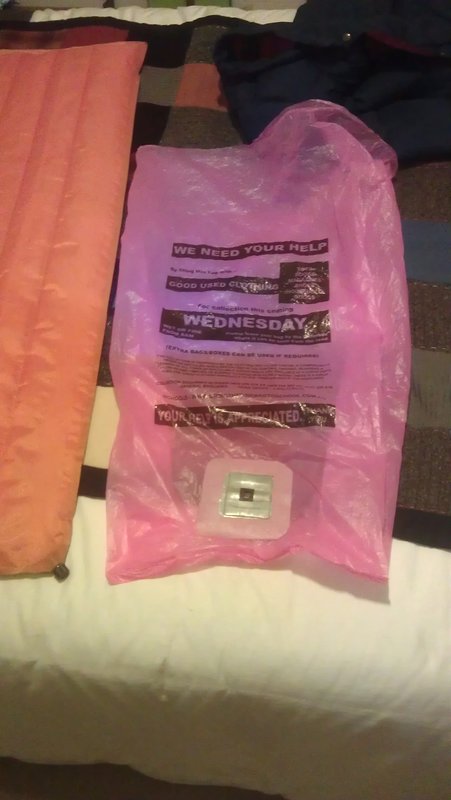

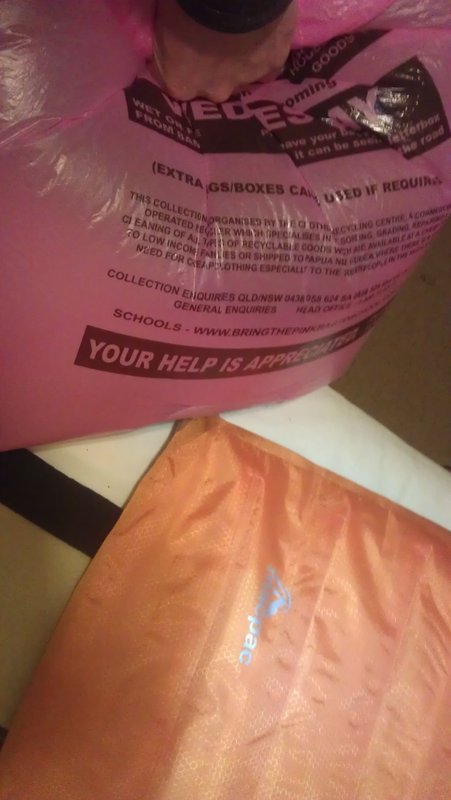

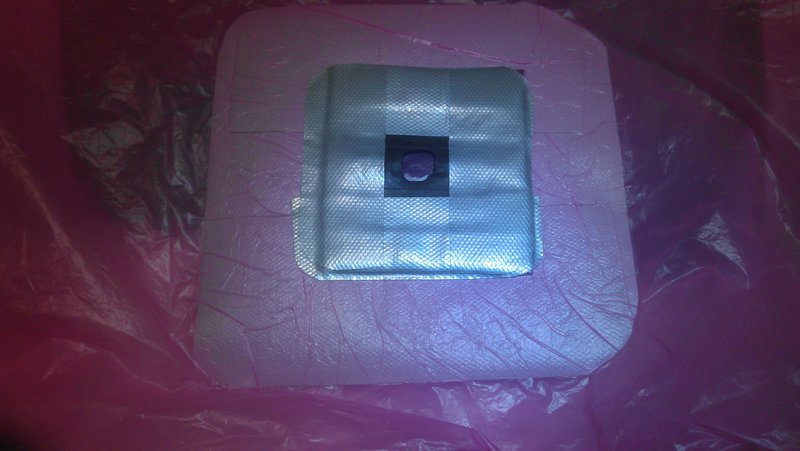

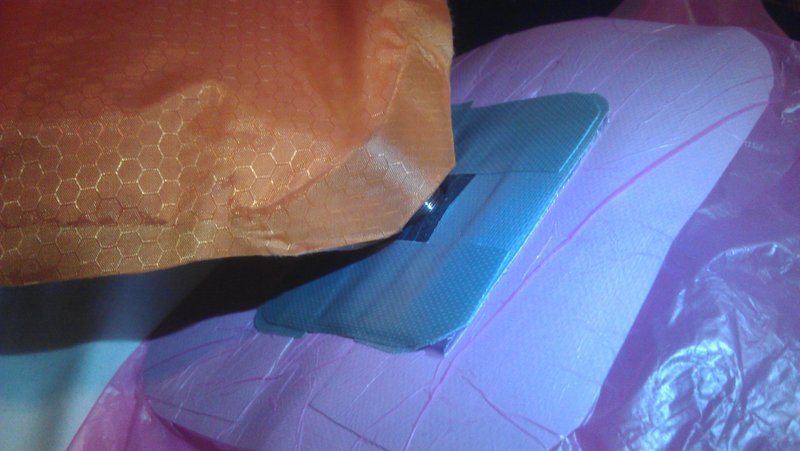

My version is just a large plastic bag, some gaffa tape, and a piece of bicycle inner tube. The mat inflates in a fraction of the time it takes doing it by mouth (2 and a bit bags of air), you don't get dizzy :), and you avoid condensation inside the mat. Weighs 30g and takes up barely a sliver of space (slips into the mat's stuff sack with the mat). The only remotely challenging part is cutting the hole the right size- big enough that you can slip it over the outer part of the valve easily, but small enough that it forms a tight seal on the threads of the valve. I'm not sure how durable the plastic will be- I think it should last a while as long as I don't apply excessive pressure when inflating. If not I'll just try a heavier garbage bag or something.


Outside



benji
Nothofagus cunninghamii
Nothofagus cunninghamii

Posts: 5
Joined: Sun 01 Jun, 2014 3:56 pm
Region: Victoria
Gender: Male

Re: Sleeping mat pump sack in 5 min

Postby Lizzy » Thu 12 Jun, 2014 6:25 am

Nifty idea! Similar to the packraft one which works a treat :)
User avatar
Lizzy
Athrotaxis selaginoides
Athrotaxis selaginoides

Posts: 1055
Joined: Mon 16 Nov, 2009 1:13 pm
Region: New South Wales
Gender: Female

Re: Sleeping mat pump sack in 5 min

Postby Strider » Thu 12 Jun, 2014 8:16 am

An Instaflator style attachment might be a bit more reliable and easier to make?
User avatar
Strider
Lagarostrobos franklinii
Lagarostrobos franklinii

Posts: 5875
Joined: Mon 07 Nov, 2011 6:55 pm
Location: Point Cook
Region: Victoria
Gender: Male

Re: Sleeping mat pump sack in 5 min

Postby Franco » Thu 12 Jun, 2014 9:03 am

I think it should last a while as long as I don't apply excessive pressure when inflating
Yes, with the Instaflator I realised that I was digging in my fingers a bit too much and in fact i made a couple of holes doing that.
It patches up with just Sellotape so not a big deal and now I know to spread the pressure.
Franco
Lagarostrobos franklinii
Lagarostrobos franklinii

Posts: 2916
Joined: Thu 30 Oct, 2008 6:48 pm
Region: Victoria
Gender: Male

Re: Sleeping mat pump sack in 5 min

Postby benji » Thu 12 Jun, 2014 12:43 pm

Nice, I hadn't actually seen the instaflator before- looks great! I found on my mat that when inflating, air would escape from the back of the valve if you weren't putting pressure on it (ie with your mouth), hence why I used the rubber piece to fit over the valve and seal on the threads. But by the looks of things this wouldn't matter with the instaflator it is so efficient you probably wouldn't notice!
benji
Nothofagus cunninghamii
Nothofagus cunninghamii

Posts: 5
Joined: Sun 01 Jun, 2014 3:56 pm
Region: Victoria
Gender: Male

Re: Sleeping mat pump sack in 5 min

Postby Eljimberino » Wed 20 Aug, 2014 3:03 pm

Anyone know where to purchase a instaflator per chance?
Eljimberino
Athrotaxis cupressoides
Athrotaxis cupressoides

Posts: 318
Joined: Wed 02 Jul, 2014 7:39 pm
Region: Western Australia

Re: Sleeping mat pump sack in 5 min

Postby Bluegum Mic » Wed 20 Aug, 2014 5:18 pm

I got mine on ebay.
User avatar
Bluegum Mic
Athrotaxis selaginoides
Athrotaxis selaginoides

Posts: 1535
Joined: Fri 08 Oct, 2010 10:24 am
Region: New South Wales
Gender: Female

Re: Sleeping mat pump sack in 5 min

Postby Eljimberino » Wed 20 Aug, 2014 6:59 pm

Had a search there, no dice. Do you know the sellers name?
Eljimberino
Athrotaxis cupressoides
Athrotaxis cupressoides

Posts: 318
Joined: Wed 02 Jul, 2014 7:39 pm
Region: Western Australia

Re: Sleeping mat pump sack in 5 min

Postby Franco » Tue 26 Aug, 2014 8:45 am

Therm A Rest sells a kit to make one.

http://www.cascadedesigns.com/therm-a-rest/accessories/neoair-airtap-pump/product

Take a good look at it and the How To Video and you should be able to make your own.
Franco
Lagarostrobos franklinii
Lagarostrobos franklinii

Posts: 2916
Joined: Thu 30 Oct, 2008 6:48 pm
Region: Victoria
Gender: Male
